Mosaic: Drawing the tiles
The tile control is already made, now it's time for the drawing of the tiles. The tile image can be one of these images:
- Numbered tiles (just a matrix of numbers)
- The demo bitmap (a resource)
- A bitmap the user chooses
For now we will use the numbered tiles, the bitmap stuff will be added later. Furthermore, there are 4 color schemes.
7.1 - How it works
We'll use device contexts many times. A device context is a set of graphic objects that affect the output. These graphic objects can be pens, bitmaps, brushes, palette etc. The device contexts we use are:
- Device contexts (DCs) of windows (The bitmap object in these DCs is what you actually see of the control)
- Back buffer DC. All the drawing will first be done on a so called back buffer. This prevents flickering as drawing directly to a control will show the process of drawing as well.
- Image DC. This DC contains the tile image currently used (numbered tiles/demo bitmap/user bitmap).
First the bitmap the user chooses, (the numbered tiles, which are drawn at runtime, the demo bitmap or a user bitmap), is put in the ImageDC. Then the 3D effect of the tiles (highlites and shadows) are drawn on the bitmap in the DC. Now remember this: The imageDC will not change from here, only if the user selects another tile type. The drawing is done tile by tile on the back buffer. For each tile, the tile is extracted from the ImageDC, then placed at the current position of that tile. An array will hold the tile positions.
7.2 - Creating the graphic objects
A new procedure is introduced, InitBitmaps:
[in your .data?]
hBackBuffer dd ?
ImageDC dd ?
hImage dd ?
hBackgroundColor dd ?
hTileColor dd ?
hFont dd ?
TextColor dd ?
[in your .data]
[in your .code]
; Init Bitmaps
;======================================================================
InitBitmaps proc hWnd:DWORD
; Create DC's for backbuffer and current image
invoke CreateCompatibleDC, NULL
mov BackBufferDC, eax
invoke CreateCompatibleDC, NULL
mov ImageDC, eax
; Create bitmap for backbuffer:
invoke GetDC, hWnd
push eax
invoke CreateCompatibleBitmap, eax, 200+20,200+20
mov hBackBuffer, eax
pop eax
invoke ReleaseDC, hWnd, eax
invoke SelectObject, BackBufferDC, hBackBuffer
; Create Arial font for the numbers
invoke CreateFont, -30, NULL, NULL, NULL, FW_EXTRABOLD, \
FALSE, FALSE, FALSE, NULL, NULL, NULL, NULL, \
NULL, ADDR FontFace
mov hFont, eax
; Select font in Image DC
invoke SelectObject, ImageDC, hFont
invoke CreateSolidBrush, 0FF8000h
mov hBackgroundColor, eax
invoke CreateSolidBrush, 0FF8080h
mov hTileColor, eax
mov TextColor, 0800000h
ret
InitBitmaps endp
Let's examine the procedure step by step:
mov BackBufferDC, eax
invoke CreateCompatibleDC, NULL
mov ImageDC, eax
CreateCompatibleDC creates a new DC that is compatible with a given window. If NULL is given as parameter (window handle), it is compatible with the default window. One DC is created for the backbuffer, the handle is stored in BackBufferDC. The other is for the image DC, stored in ImageDC.
invoke GetDC, hWnd
push eax
invoke CreateCompatibleBitmap, eax, 200+20,200+20
mov hBackBuffer, eax
pop eax
invoke ReleaseDC, hWnd, eax
invoke SelectObject, BackBufferDC, hBackBuffer
CreateCompatibleBitmap creates a new bitmap object that is compatible with a given DC. First we get the DC of the main window with GetDC. The handle is pushed onto the stack to save it for ReleaseDC. CreateCompatibleBitmap is then called, with the main window DC as DC, and 220x220 as bitmap size. The extra 20 pixels are for the margins. The bitmap handle is saved in hBackBuffer, the window DC handle is popped of the stack again and released (ReleaseDC should always be used with GetDC). Finally, SelectObject selects a graphic object in a DC. Here, the bitmap just created is put in the backbuffer DC.
invoke CreateFont, -30, NULL, NULL, NULL, FW_EXTRABOLD, \
FALSE, FALSE, FALSE, NULL, NULL, NULL, NULL, NULL, ADDR FontFace
mov hFont, eax
; Select font in Image DC
invoke SelectObject, ImageDC, hFont
To draw the numbers on the tiles, we need a font. CreateFont creates such a font. Look it up in your reference, FontFace is the name of the font, "Arial". -30 is a size for the font. The handle for the font is saved in hFont and then the font is selected in the ImageDC so we can write with the font on the image DC.
mov hBackgroundColor, eax
invoke CreateSolidBrush, 00FF0000h
mov hTileColor, eax
mov TextColor, 000000h
Finally, a few brush handles are made, they are not selected in any DC right now, but they will be later. CreateSolidBrush creates a brush with a certain color, you can use the handle to draw things (lines etc) with the brush. TextColor is not a brush, it's just a color value (we don't need a brush for the text color, only the color value).
Note: the image bitmap is not created yet, the DC is already available, but as the user can choose the type of bitmap, this bitmap is made when the user selects a type, then it is selected in the DC.
A function to free all these handles is necessary too:
;======================================================================
; Delete Bitmaps
;======================================================================
DeleteBitmaps proc
invoke DeleteDC, BackBufferDC
invoke DeleteDC, ImageDC
invoke DeleteObject, hImage
invoke DeleteObject, hBackBuffer
invoke DeleteObject, hFont
invoke DeleteObject, hBackgroundColor
invoke DeleteObject, hTileColor
ret
DeleteBitmaps endp
Then both functions should be called:
.IF eax==WM_CREATE
invoke InitControls, hWnd
invoke InitBitmaps, hWnd ;<<< insert here
.ELSEIF eax==WM_DESTROY
invoke DeleteBitmaps ;<<< other one here
invoke PostQuitMessage, NULL
...
On creation of the main window, the bitmaps and DCs are initialized, before destroying, the bitmaps and DCs are deleted again.
7.3 - Tile mode
Create a new procedure, SetBitmap:
[in mosaic.inc]
IMAGETYPE_NUMBERS equ 1
IMAGETYPE_BITMAP equ 2
[in .data?]
[in .code]
;======================================================================
; Set Bitmap
;======================================================================
SetBitmap proc hWnd:DWORD, ImageType:DWORD
mov eax, ImageType
.IF eax==IMAGETYPE_NUMBERS
;--- delete old image ---
invoke DeleteObject, hImage
;--- Get DC ---
invoke GetDC, hWnd
push eax
;--- Create new bitmap for the numbers bitmap ---
invoke CreateCompatibleBitmap, eax, 200, 200
mov hImage, eax
pop eax
;--- Release DC ---
invoke ReleaseDC, hWnd, eax
;--- Select new bitmap in DC ---
invoke SelectObject, ImageDC, hImage
;--- Draw numbers on the bitmap ---
invoke DrawNumbers
;--- Create the 3D effect on the bitmap ---
invoke CreateTiles
.ENDIF
;--- Set the new image type ---
mov eax, ImageType
mov CurImageType, eax
ret
SetBitmap endp
The SetBitmap procedure selects the type of image to use for the tiles. The procedure takes 2 parameters: hWnd, the handle of the main window, and ImageType, which can be one of these constants: IMAGETYPE_STANDARD, IMAGETYPE_NUMBERS, IMAGETYPE_BITMAP. These constants are defined in the include file. Right now, the procedure only reacts to IMAGETYPE_NUMBERS, we will implement the other two later. When the numbers image type is chosen, the old image (hImage) is deleted, and a new one is created with CreateCompatibleBitmap. Then two functions are called, DrawNumbers and CreateTiles, which are defined in the code below. DrawNumbers just draws an array of numbers on the new bitmap. CreateTiles draws the 3D effect on the bitmap. The CreateTiles procedure will be used for the other two image types too.
DrawNumbers PROTO STDCALL
.data
NumberFormat db "%lu",0
Rect200 RECT <0,0,200,200>
.data?
Buffer db 200 dup (?)
.code
;======================================================================
; Draw Numbers
;======================================================================
DrawNumbers proc uses ebx edi
LOCAL TempRect:RECT
; --- Set the textcolor of ImageDC to TextColor ---
invoke SetTextColor, ImageDC, TextColor
; --- Fill the imageDC with the tile color brush ---
invoke FillRect, ImageDC, ADDR Rect200, hTileColor
; --- Set the background mode to transparent (for the text) ---
invoke SetBkMode, ImageDC, TRANSPARENT
; --- Loop through all the numbers and draw them one by one ---
xor ebx, ebx
.WHILE ebx<16
mov eax, ebx
inc eax
invoke GetCoordinates, eax
mov dx, ax ; dx = row
shr eax, 16 ; ax = column
and edx, 0ffffh ; make sure that edx = dx
imul edx, edx, 50;} Multipy edx as well as eax with 50
imul eax, 50 ;}
mov TempRect.left, eax
mov TempRect.top, edx
add eax, 50
add edx, 50
mov TempRect.right, eax
mov TempRect.bottom, edx
mov eax, ebx
inc eax
invoke wsprintf, ADDR Buffer, ADDR NumberFormat, eax
invoke DrawText, ImageDC, ADDR Buffer, -1, ADDR TempRect,\
DT_CENTER or DT_SINGLELINE or DT_VCENTER
inc ebx
.ENDW
ret
DrawNumbers endp
;======================================================================
; GetCoordinates
;======================================================================
GetCoordinates proc dwTile:DWORD
mov eax, dwTile
dec eax
cdq
mov ecx, 4
div ecx
;eax=quotient = row
;edx=remainder = column
shl edx, 16
add eax, edx
ret
GetCoordinates endp
Two new procedures here, GetCoordinates is a little procedure that will be used several times in the program. It uses a 0-based index of the tiles (tile 0, tile 1, tile 2) etc. and returns the row of the tile (0,1,2,3) in the low word of eax, the column of the tile (0,1,2,3) in the high word of eax. The calculation is quite simple. Divide the tile index by 4, the remainder will be the column, the quotient the row of the tile. The shl instruction shifts the colomn in the high word (shift 16 bits left), and add adds the row.
The DrawNumbers procedure works like this:
- Set textcolor to the value of the TextColor variable
- Fill the complete bitmap with the tilecolor brush (rect200 is a RECT structure that defines the area of 200x200 pixels starting at (0,0))
- Set the background mode to TRANSPARENT to prevent an ugly background around the text.
- The tile loop: Loop from 0 to 15
- GetCoordinates(currentloopvalue)
- Extract row and column from return value
multiply the row and the column with 50
(this gives the image coordinates of the tile) - Fill a RECT structure (TempRect) with the coordinates of
the tile. - Use wsprintf to convert the tile number into text.
(NumberFormat is the format the number should be outputted
in, buffer is a temporary buffer) - Use DrawText to draw the number at the right coordinates
CreateTiles draws the button-style 3D effect on the tiles by drawing black & white lines at the right places:
;======================================================================
; Create Tiles
;======================================================================
CreateTiles proc uses ebx esi edi
invoke GetStockObject, BLACK_PEN
invoke SelectObject, ImageDC, eax
; Dark lines, vertical. x = 50k - 1 (k=1,2,3,4)
; ebx = k
; esi = x
xor ebx, ebx
inc ebx
; ebx is 1 now
.WHILE ebx<5 ; (ebx= 1,2,3,4)
mov eax, 50
mul ebx
mov esi, eax
dec esi
invoke MoveToEx, ImageDC, esi, 0, NULL
invoke LineTo, ImageDC, esi, 199
inc ebx
.ENDW
; Dark lines, horizontal. y = 50k - 1 (k=1,2,3,4)
; ebx = k
; esi = y
xor ebx, ebx
inc ebx
; ebx is 1 now
.WHILE ebx<5 ; (ebx= 1,2,3,4)
mov eax, 50
mul ebx
mov esi, eax
dec esi
invoke MoveToEx, ImageDC, 0, esi, NULL
invoke LineTo, ImageDC, 199, esi
inc ebx
.ENDW
invoke GetStockObject, WHITE_PEN
invoke SelectObject, ImageDC, eax
; Light lines, vertical. x = 50k (k=0,1,2,3)
; ebx = k
; esi = x
xor ebx, ebx
.WHILE ebx<4 ; (ebx= 0,1,2,3)
mov eax, 50
mul ebx
mov esi, eax
invoke MoveToEx, ImageDC, esi, 0, NULL
invoke LineTo, ImageDC, esi, 199
inc ebx
.ENDW
; Light lines, horizontal. y = 50k (k=0,1,2,3)
; ebx = k
; esi = y
xor ebx, ebx
; ebx is 1 now
.WHILE ebx<4 ; (ebx= 0,1,2,3)
mov eax, 50
mul ebx
mov esi, eax
invoke MoveToEx, ImageDC, 0, esi, NULL
invoke LineTo, ImageDC, 199, esi
inc ebx
.ENDW
ret
CreateTiles endp
This procedure is quite easy to understand. It draws 4 sets of lines. Each line is drawn by first getting a brush with GetStockObject (retrieves a standard brush color from windows). This brush is selected in the imagedc. Then the current point is moved to the startpoint of the line with MoveToEx, and the line is drawn with LineTo.
7.4 - Drawing
The procudure below will be used in the future too, but the code of it is temporary right now, it just draws the image DC on the static control to show if your code worked. Furthermore, some additional procedures are introduced to initialize everything correctly.
InitGame PROTO STDCALL :DWORD
[in .code]
;======================================================================
; Draw Numbers
;======================================================================
DrawProc proc uses ebx edi esi hWnd:DWORD, hDC:DWORD
invoke BitBlt, hDC, 9, 9, 220, 220, ImageDC, 0, 0, SRCCOPY
ret
DrawProc endp
;======================================================================
; InitGame
;======================================================================
InitGame proc hWnd:DWORD
invoke SetBitmap, hWnd, IMAGETYPE_NUMBERS
ret
InitGame endp
[In the WM_CREATE handler of WndProc, below 'invoke InitBitmaps, hWnd']
invoke InitGame, hWnd
[In the messagehandler in WndProc, between the other ELSEIFs]
.ELSEIF eax==WM_DRAWITEM
mov eax, wParam
.IF eax==CID_STATIC
push ebx
mov ebx, lParam
assume ebx:ptr DRAWITEMSTRUCT
invoke DrawProc, hWnd, [ebx].hdc
assume ebx:nothing
pop ebx
xor eax, eax
inc eax
.ELSE
xor eax, eax
.ENDIF
The DrawProc and InitGame are fairly easy to understand. BitBlt copies a part of a bitmap from one DC to another. Here the complete bitmap in ImageDC is copied to the DC of the static control window.
The WM_DRAWITEM message requires some more explanation:
WM_DRAWITEM is sent to the main window when one of the owner-drawn controls needs to be drawn. An owner-drawn control is a control that is drawn by the program instead of windows. When this message is sent, wParam contains the ID of the control that needs to be drawn. Here the .IF eax==CID_STATIC finds out if it is the static control (the tiles window) that needs to be drawn. If not (.ELSE), 0 is returned from WndProc (xor eax, eax). 0 tells windows that the message is not handled by the program. lParam is a pointer to a DRAWITEMSTRUCT.
assume ebx:ptr DRAWITEMSTRUCT
invoke DrawProc, hWnd, [ebx].hdc
assume ebx:nothing
First, lParam is put in ebx. Now ebx is a pointer to the DRAWITEMSTRUCT structure. The assume statement gives masm more information about the register. assume ebx:ptr DRAWITEMSTRUCT tells masm that ebx is a pointer to a DRAWITEMSTRUCT structure. Now you can use the structure members directly on ebx. hdc is one of these members, it contains the handle to the device context of the window. The control will show whatever there is on that DC. This DC is passed to DrawProc. Don't forget to tell masm to assume nothing for ebx (assume ebx:nothing), otherwise masm thinks ebx is a pointer to DRAWITEMSTRUCT throughout the whole program. Very important is that you should save ebx in your procedures (that's why the push ebx/pop ebx instructions are included). Windows assumes the values of the ebx, esi and edi registers do not change when your window procedure is called by windows (this applies to all callback functions in windows, always save ebx, esi & edi).
7.5 - Done
The current project files are here: mosaic4.zip

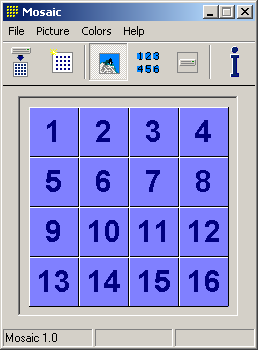

If you assemble the program and run it, you should see this:
As you can see, the tiles are drawn correctly.
